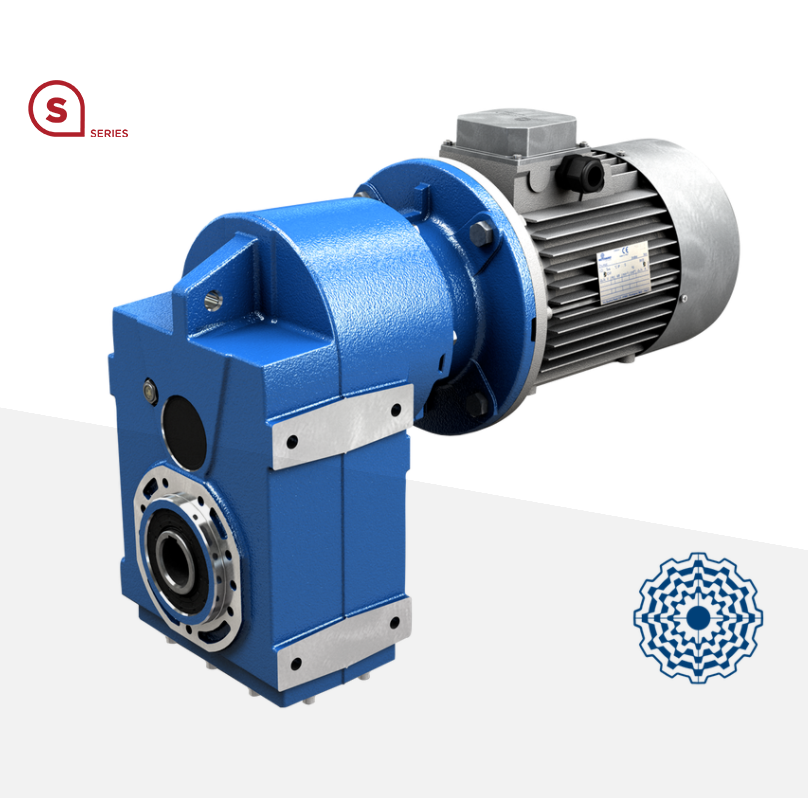

铸铁-轴装式齿轮减速机

铸铁-轴装式齿轮减速机

S - IS - PS - CS

特别为传送带或传送器设计, 这个系列同样适用于广泛多样的工业领域
S 系列轴装齿轮减速器提供铸铁型号,可选规格 050 至 125,减速比范围宽,确保在所有操作条件下具有***大效率。
摩铎利 S 系列推出了两个新尺寸机型 - 140 和 150,可拓宽高功率螺旋伞齿轮减速机的安装范围。

提供认证 (高达大小 125):ATEX 2GD/3GD

质量保证:自交付之日起两年。

产品特性

型号: 050-060-080-100-125-140-150
  • Power from 0,12 kW up to 45 kW with three phase 4 pole motors

  • Reduction ratios between 4,06 and 394,69

  • Torque max 9.500 Nm

  • Admissible radial loads max 30.000 N

型号: 050-060-080-100-125
  • Universal casing

  • Versions: S... C  Foot-flange mounting / Hollow shaf - S... D Foot-flange mounting / Solid shaft - S...  L Foot-flange mounting / Shrink disc shaft

  • Gearing with 2 and 3 reduction stages

  • Modularity

  • Gears hardened and tempered with shaved or ground profile

  • Cases in EN-GJL-200 grey cast iron for high strength and optimized with FEM analysis

  • Excellent mechanical strength

  • Load capacity calculated to ISO 6336, DIN 3990 and AGMA 2001

  • Painted with RAL 5010  blue  epoxy-polyester powder

型号: 140-150
  • Universal casing

  • Versions:  S... C Foot-flange mounting / Hollow shaft, S... L Foot-flange mounting / Shrink disc shaft

  • Gearing with 2 and 3 reduction stages

  • Gears hardened and tempered with ground profile

  • Cases in EN-GJL-200 grey cast iron

  • Load capacity calculated to ISO 6336, DIN 3990 and AGMA 2001

  • Gearboxes supplied without lubricant

  • Painted with RAL 5010  blue  epoxy-polyester powder
